The MasterLink Shop Writer Appointment Scheduler provides a powerful, system-wide scheduling system for organizing your shop operations, appointments, technician assignments, work areas, and planned services.
Unlike many standard calendar programs, the MLS Scheduler is fully integrated into your management system and accessible from any workstation running MasterLink Shop Writer.
The Scheduler can be used for:
•client appointments
•technician scheduling
•work area planning
•fleet service coordination
•internal meetings
•callbacks and reminders
•estimates and quotes
•service planning
•recurring events
•preventative maintenance follow ups
Because the Scheduler integrates directly with:
•Clients
•Service Units
•Quotes
•Workorders
•PM Scheduling
it becomes much more than a calendar. It is an operational planning center for the entire business.
About The Scheduler
Many standard calendar systems are:
•isolated to one computer
•dependent on expensive server software
•disconnected from the shop management process
The MasterLink Shop Writer Scheduler solves these issues by allowing all authorized workstations to:
•view appointments
•create appointments
•edit schedules
•search activities
•attach service units and clients
•convert appointments directly into workorders
The Scheduler can even store:
•labor operations
•parts estimates
•notes and concerns
•quotes for future work
so much of the workorder can already be prepared before the client arrives.

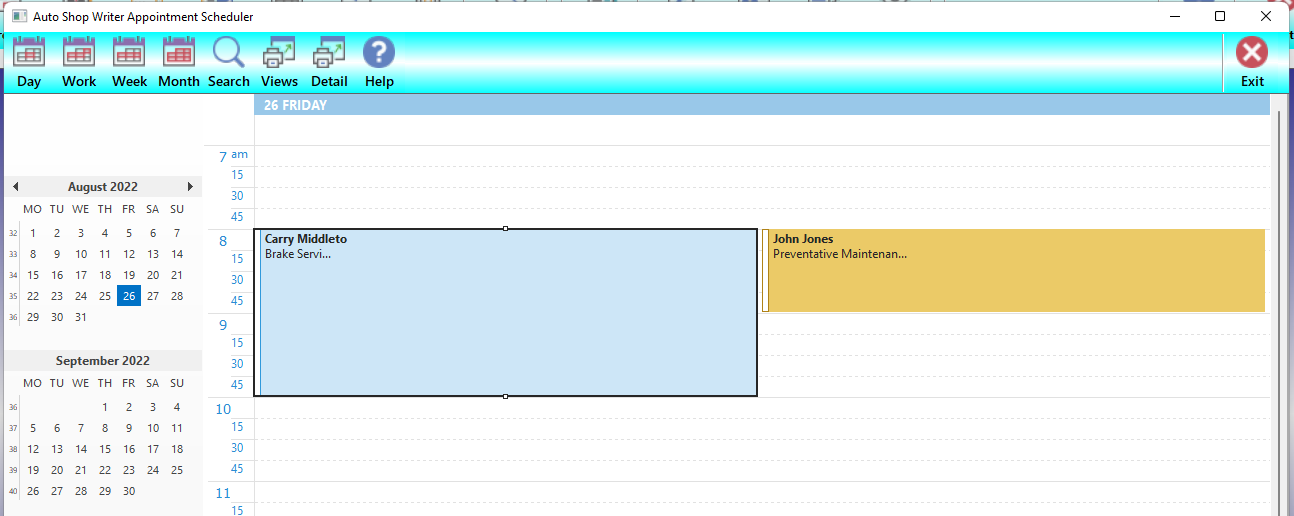

Scheduler Window Layout
The Scheduler display contains:
•a calendar view
•appointment browse areas
•timeline displays
•edit controls
•date navigation tools
•printing functions
•search functions
Appointments may be viewed in:
•Day
•Work Week
•Full Week
•Month
•Timeline
formats.
Workorder Interface
The Scheduler integrates directly with Work Processing.
When creating a new workorder:
1.Select the desired workorder type
oEstimate
oInvoice
oCounter Sale
2.Press the Appointment button
3.Select the scheduled appointment
MasterLink Shop Writer will automatically:
•create the workorder
•insert the client
•insert the service unit
•include notes
•include quote items
•insert labor operations
•insert parts
This dramatically speeds up client check-in and improves professionalism.

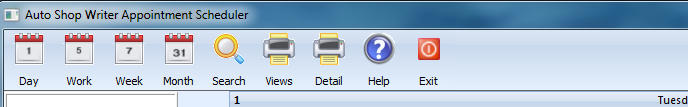

Scheduler Controls
View Selection
The toolbar allows instant switching between:
•Day
•Work Week
•Full Week
•Month
•Timeline
views.
This makes it easy to:
•manage technicians
•coordinate workloads
•identify open time slots
•review future scheduling
Search
The Search feature allows quick lookup of appointments using:
•license
•client name
•service type
•phone number
•summary text
•notes
•vehicle information
The system searches:
•summary descriptions
•detailed notes
•client data
•service unit data
Once located:
•double click the result
•the Scheduler jumps directly to the appointment
Printing
Two primary print modes are available.
Views
Prints the currently displayed calendar format including:
•times
•summaries
•notes
•date ranges
Detail
Prints a detailed appointment report including:
•client information
•vehicle information
•contact numbers
•service descriptions
•detailed notes
The Date Picker
The Date Picker serves several functions simultaneously.
It:
•displays three months at once
•highlights the current date
•bolds dates containing appointments
•frames the selected date
You may:
•click a single day for viewing
•drag across multiple days
•print selected ranges
•create custom viewing periods
This is especially useful when planning:
•technician schedules
•vacations
•fleet service blocks
•shop events
Adding New Appointments
To create an appointment:
1.Navigate to the desired date
2.Click on the starting time
3.Begin typing the Summary Description
4.Press Enter
The appointment is immediately created.
You may:
•leave it as a quick entry
•or double click for full edit mode
All Day Events
To create an all-day appointment:
•click in the solid bar above the timeline
•under the selected date
Examples include:
•holidays
•training
•shop closures
•inventory days
•meetings
Adjusting Appointment Times
Appointments may be resized visually.
Simply:
•click the appointment
•drag the lower edge
The appointment duration adjusts automatically.
This is often faster than editing times manually.
Multi-Day Appointments
Switch to Month View and drag the appointment across multiple days.
This is useful for:
•extended repairs
•vacations
•shop projects
•training sessions

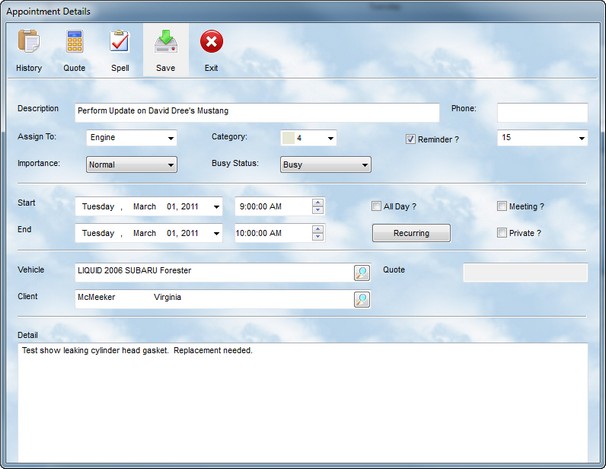

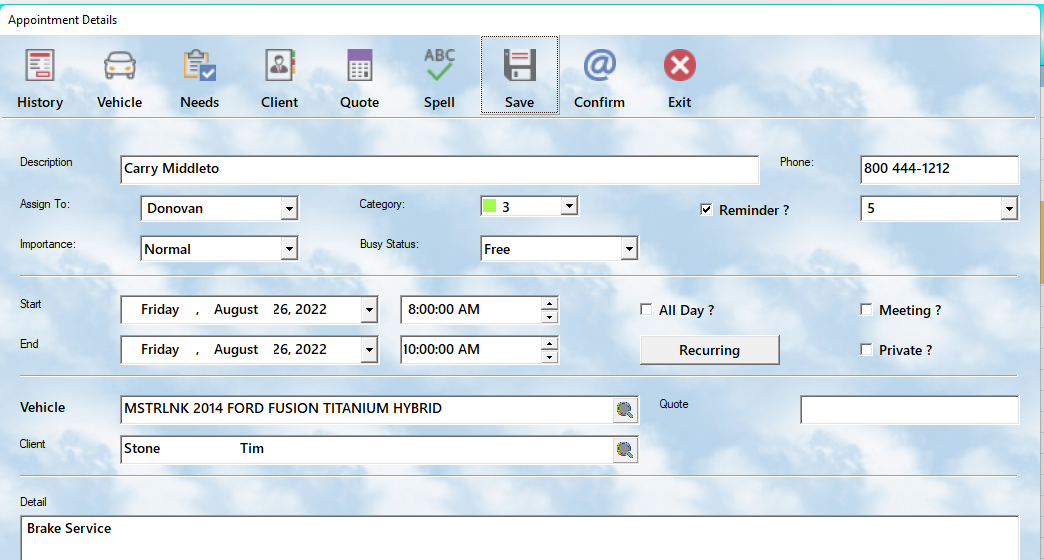

Appointment Editor
Double click any appointment to enter full edit mode.
Appointment Description
The Summary field should contain:
•client name
•service type
•service unit reference
Example:
John Hawkins – Transmission Service – 2024 Ford F150
Specific summaries improve:
•searching
•scheduling
•organization
•workload planning
Phone
Always ask for the client's:
“best contact number”
This allows rapid communication if:
•schedules change
•parts are delayed
•approvals are needed
Assign To
Appointments may be assigned by:
•technician
•work area
•department
•service type
The available selections are created in:
Tools → Lists → Assign
Examples:
•Alignment Rack
•Technician 1
•Electrical
•Quick Service
•Diagnostics
Category
Appointments may be color coded.
Shops commonly use categories for:
•waiting clients
•morning drop offs
•afternoon pickups
•diagnostic work
•fleet work
•internal meetings
This creates rapid visual organization.
Reminder
Reminders may be activated for appointments.
Specify:
•reminder enabled
•minutes before appointment
Importance
Appointments may be marked:
•Low
•Normal
•High
This assists in prioritizing workflow.
Busy Status
Appointments display status indicators within the calendar views.
Examples include:
•Busy
•Tentative
•Available
•Out of Office
Start / End Date And Time
Although appointments may be adjusted visually using drag-and-drop, all dates and times may also be edited directly in the detail dialog.
All Day
Selecting All Day removes time requirements and places the appointment in the top event bar.
Meeting
Meeting appointments display a meeting icon in the calendar.
Private
Private appointments display a lock icon.

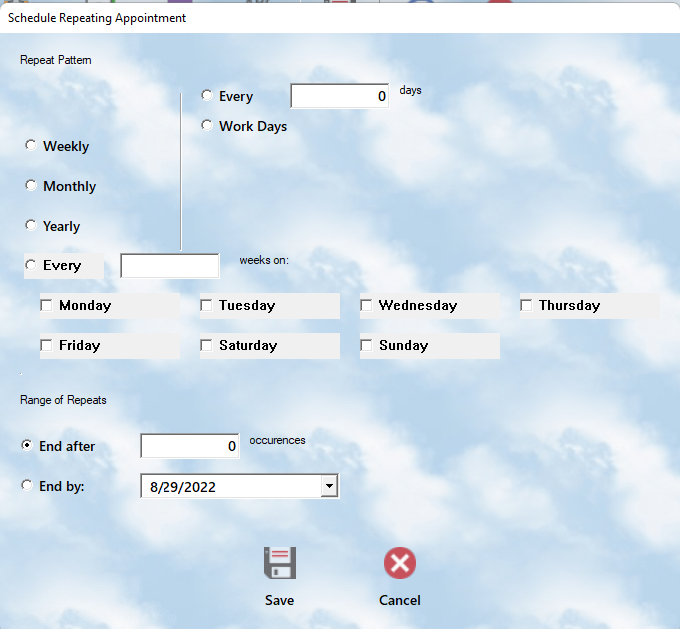

Recurring Appointments
Recurring appointments automate repeated scheduling.
Examples:
•weekly staff meetings
•monthly inspections
•recurring fleet maintenance
•periodic services
The recurrence system allows:
•daily
•weekly
•monthly
•custom interval scheduling
Once recurrence is applied:
•all current appointment data is duplicated
•future appointments are created automatically
Because of this:
Be sure the original appointment is fully completed before creating recurrence.
Vehicle And Client Assignment
Appointments may be linked directly to:
•service units
•clients
This provides:
•instant workorder creation
•history access
•quote integration
•PM integration
When a service unit is selected:
•the client is assigned automatically
Vehicle searches may be performed by:
•license
•client name
•make/model
Quotes
Quotes may be attached directly to appointments.
When the appointment is later converted into a workorder:
•labor operations transfer automatically
•parts transfer automatically
•notes transfer automatically
This can dramatically reduce check-in time.
Detail Notes
The Notes field allows extensive information about:
•client concerns
•symptoms
•requested inspections
•special instructions
•callback requests
This information is available before the client arrives.
A well-documented appointment allows staff to:
•prepare estimates early
•order parts in advance
•schedule technicians appropriately
•improve client confidence
Appointments containing notes display a check mark indicator.
Moving Appointments
Appointments may be moved by:
•drag-and-drop in Month View
•manual editing of dates/times
Deleting Appointments
To remove an appointment:
1.Highlight it
2.Press the Delete key
Older appointments do not need to be removed unless desired.
Important Operating Note
The Scheduler is fully multi-user and accessible from all workstations.
However, the system does not currently auto-refresh calendar displays continuously across all computers.
For best operation:
•enter the Scheduler
•complete your work
•exit the Scheduler
•reopen when needed
This ensures the newest appointments entered by other users are displayed properly.
If only one person manages scheduling, the Scheduler may remain open continuously.
Some shops also dedicate:
•a second monitor
•a front office display
•a background workstation
to keep the Scheduler visible throughout the day.
Best Practices
•Use clear appointment summaries
•Always attach clients and service units when possible
•Enter detailed notes during scheduling
•Use color coding consistently
•Keep technician assignments organized
•Pre-build quotes whenever possible
•Review schedules daily
•Confirm client contact numbers
•Use recurring appointments carefully
•Schedule realistic time blocks
The Appointment Scheduler is one of the most powerful workflow management tools in MasterLink Shop Writer. Properly utilized, it improves organization, communication, technician efficiency, and overall client satisfaction.
